Name: Platform Scale OIML Certified HCQB Shear Beam Load Cell for Platform Scale (Keli SQB)
Brand: Platform Scale OIML Certified HCQB Shear Beam Load Cell for Platform Scale (Keli SQB)
SKU: HCQB
Price: 1 USD
Availability: InStock
Rating: 4.8 (102 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Model Number: HCQB

Type: Load Cell

Usage: Platform scale

Theory: Resistance sensor

Output: analog sensor

Description: shear beam load cell

Rated Load: 100kg to 10t

OIML Accuracy Class: C3

Rated output: 3.0Â±0.003; 2.0Â±0.002(0.1~0.5t)

Temperature Range,compensated: -10~+40â„ƒ

Input resistance: 400Â±20Î©

Water proof: IP67~IP68

Output resistance: 352Â±3Î©

Material: Alloy Steel, Stainless steel

Cable: Dia.5mmX3m

Warranty: 1 Year

Grundinformation

Model Number: HCQB

Zahlung und Versand AGB

Packaging Details: Neutral packing or according to customers' requirements

Supply Ability: 500 Piece/Pieces per Day Single-Ended Shear Beam Load Cell SQB 100kg to 10t For Plateform

Produkt-Beschreibung

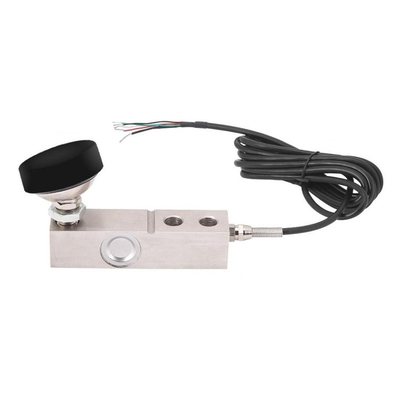

OIML Certified Shear Beam Load Cell HCQB (ZEMIC H8C, Keli SQB) from 100kg to 10t For Platform Scales

FEATURES

1. OIML C3 Certified;

2.Capacities 100kg~10t

3.Nickel plated alloy steel or stainless steel construction

4.IP68 protection

5.Applied in plateform scales;

DESCRIPTION

Model HCQB is a welded Single-ended shear beam load cell manufactured in alloy steel. It is designed for multiple cell applications such as low profile plateform or small tank scales when used with proper mounting accessories.It is insensitive to side loading and capable of reversed loading

OUTLINE DIMENSIONS(mm)

Rated capacity(t)	L	L1	L2	L3	L4	H	H1	W	C1	C2	T
0.1,0.15,0.2,0.3, 0.5,0.75,1,1.5,2,2.5	130	12.7	76.2	25.4	53.5	31.8	15.7	31.8	Φ13.5	Φ13	M12
3,5	171.5	19	95.3	38.1	72.5	38.1	26	38.1	Φ20	Φ20	M18x1.5
7.5,10	225.5	25.3	124	50.8	102	50.8	25.4	50.8	Φ27	Φ27	M24x2

SPECIFICATIONS

PARAMETER	VALUE	UNIT
Rated capacity-R.C.	0.1~10	t
Accuracy class	OIML C3
Total Error	0.02	±% FSO
Rated output	3.0±0.003 2.0±0.002(0.1~0.5t)	mV/V
Zero balance	1	±% FSO
Creep Error	0.02	±% FSO
Temperature effect on zero	0.02	±% FSO/10℃
Temperature effect on output	0.02	±% FSO/10℃
Temperature Range,compensated	-10~+40	℃
Operating Temperature Range	-20~+70	℃
Maximum safe load limit	150	% of R.C.
Ultimate over load	200	% of R.C.
Recommend excitation voltage	10	Vdc
Maximum excitation voltage	15	Vdc
Input resistance	400±20	Ω
Output resistance	352±3	Ω
Insulation resistance	≥5000	MΩ
sealing	IP68
Construction	Alloy steel
Construction	Stainless steel
Cable	Length:3m	Diameter:Φ5mm
