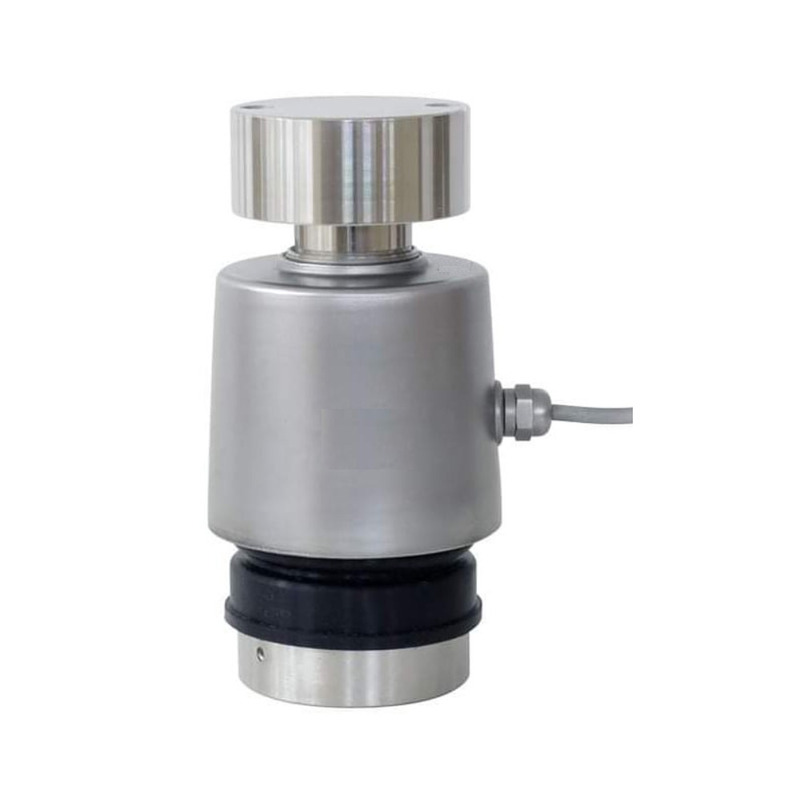

Truck Scale Column Load Cell HCLC (Flintec RC3) for Truck Scale

1.0 Pieces
MOQ
Truck Scale Column Load Cell HCLC (Flintec RC3) for Truck Scale
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: HCLC
Type: Load Cell
Usage: Truck scale
Theory: Resistance seneor
Output: Analog signal
Description: Weighing load cell
Rated Load: 30t~40t
Accuracy: 0.03%F.S
Rated output: 2.0±0.002 mV/V
Input resistance: 1150±50Ω
Water proof: IP68
Output resistance: 1003±5Ω
Material: Alloy Steel
Insulation resistance: ≥5000MΩ/50V DC
Warranty: 1 Year
Grundinformation
Model Number: HCLC
Zahlung und Versand AGB
Packaging Details: Neutral packing or according to customers' requirements for Self-aligning column load cell HC16 10t~50t for truck scale
Supply Ability: 500 Piece/Pieces per Day Self-aligning Column Load Cell HC16(keli ZSFY)10t~50t
Produkt-Beschreibung





High Precision Flintec RC3 Load Cell for Truck Scales



FEATURES

1.Capacities: 30, 40t;

2.Self-aligning,Alloy steel single coulmn;

3.Hermetically sealed IP68;

4.Built-in surge protection tubes;

5.Interchangeable with Flintec RC3;



DESCRIPTION

The HCLC is a single column,alloy steel compression load cell.

This product is suitable for use in truck scale, road and rail weighbridge and process weighing applications.

The welded construction and built-in surge protection ensure that this product can be used successfully in harsh environments.



OUTLINE DIMENSIONS(mm)









SPECIFICATIONS



From 30t to 40t
Total Error <±0.03 %F.S
Repeatability Error <±0.03 %F.S
Creep Error over 30 min. <±0.03 %F.S
Rated output 2.0±0.002 mV/V
Zero balance ±1 %F.S
Zero shift after loading <±0.05 %F.S
Temperature effect on output <±0.02 %F.S/10℃
Temperature effect on zero <±0.02 %F.S/10℃
Reference temperature  23 ℃
Temperature Range,compensated -10…+40 ℃
Operating Temperature Range -30…+70 ℃
Storage Temperature Range -50…+85 ℃
Input resistance 1150±50 Ω
Output resistance 1003±5 Ω
Insulation resistance(50V) 5000 MΩ
Recommend excitation voltage 10 V DC
Maximum excitation voltage  3...15 V DC
Safe load limit 150 %F.S
Ultimate overload 300 %F.S
Cable 12 m
Sealing IP68



Note: FSO-Full Scale Output

All specifications listed subject to change without notice.
