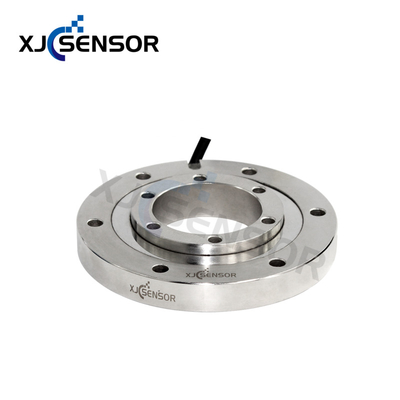

Name: High Accuracy Donut Type Digital Load Cell Machine Tools Stainless Steel 0-5 Ton Load Cell Pressure Sensor
Brand: High Accuracy Donut Type Digital Load Cell Machine Tools Stainless Steel 0-5 Ton Load Cell Pressure Sensor
SKU: XJC-H120
Price: 1 USD
Availability: InStock
Rating: 4.5 (194 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Model Number: XJC-H120

Type: Load Cell, Compression

Description: Load Cell 5 Ton

Pressure range: 0-5T

Accuracy: 0.1%FS

Output: 4-20mA Â±10V

Application: Machine Tools

Power supply: 5V-10V DC

Material: Stainless Steel

Product name: Bending Load Cell

Warranty: 12 Months

Resolution (Bits): 12 b

Grundinformation

Model Number: XJC-H120

Zahlung und Versand AGB

Packaging Details: Packing : Standard exporter carton packing (Other packing requirement accept upon further request )

Supply Ability: 5000 Piece/Pieces per Month OEM laod cell 5T sensor for balance scale sample is available

Produkt-Beschreibung

XJC-H120

1. Adopts high-precision resistance strain principle
2. Meet force measurement in the range of 0-5T.
3. Share beam structural design, pressure-bearing, easy to install.
4. stainless steel
5. Small size, beautiful appearance
6. High dynamic response frequency

Capacity	0-5T	Material	Stainless steel
Accuracy	0.1% F.S.	Rated output	2.0±1.5%mV/V
Recommended excitation	5-10VDC	Maximum excitation	15V
Natural frequency	≥1KHZ	Compensated temp range	- 10 ~ 60 ºC
Hysteresis	0.1% F.S.	Operating temp range	- 20 ~ 80 ºC
Repeatability	0.1% F.S.	Insulation	≥5000MΩ/100VDC
Input impedance	380（750) ± 30Ω	Output impedance	350（700）± 5 Ω
Creep (30min)	0.05% F.S.	Temp effect on output	0.05% F.S. / 10ºC
Zero balance	± 2% F.S.	Temp effect on zero	0.05% F.S. / 10ºC
Safe load limit	150%	Ultimate load limit	200%
Cable size	∅5x3m	Life	Full scale more than 1 million times
Wire connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White

Contact us for details>>>

Company profile

XJCSENSOR is a high-tech enterprise with more than 10+ years experience specialized in load celll designing, product R&D, manufacturing, marketing and sevices. We specialize in Torque Sensor, Load Cell, Pressure Transducer, Multi Axis sensor, Tension pick-up.

XJCSENSOR, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance, high dynamic response frequency and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

XJCSENSOR always guidelines of "Customer Oriented, Quality Focused, Professional Service ".

Partners

XJC have BYD, HUAWEI, Foxccon, TTI, CATL etc. third-party inspection and CE, FCC, Rohs, ISO9001 verified.

Certificates

XJC sensor production process includes: scribing and patching strain gauge( without scribing,

the position of the strain gauge is eccentric, might cause uneven force for sensor), zero point, insulation, full temperature compensation process(without this process will cause zero point and sensitivity drift when temperature changing), complete inspections are required after each process is completed, inspection reports will be done based on performance inspections before packaging.

FAQ:

Q: What is your MOQ?
A:Sample order is acceptable.

Q:What is lead time?
A:In stock models will be delivered within 3-5 working days.If the order items are
not in stock,it will be 10-30 working days.

Q:What terms of payment are available ?
A:T/T, L/C, Western Union, Paypal, etc.

Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
We have USD104,000.00 of caution money to assure your orders.

Q: How to place an order ?
A: Please provide us more details, such as: application, measurement range,
output, accuracy, thread type, electric connector and other related parameters.

Q: What is the express delivery?
A: DHL, Fedex, TNT ,EMS, UPS etc.

Q: Warranty
A: Quality guarantee: 12 months.

Q: After-sale service?
A: After you receive our product, if you have any questions or need any
assistance, we can provide you the after-sale service by e-mail, skype,
telephone and WhatsApp etc.
