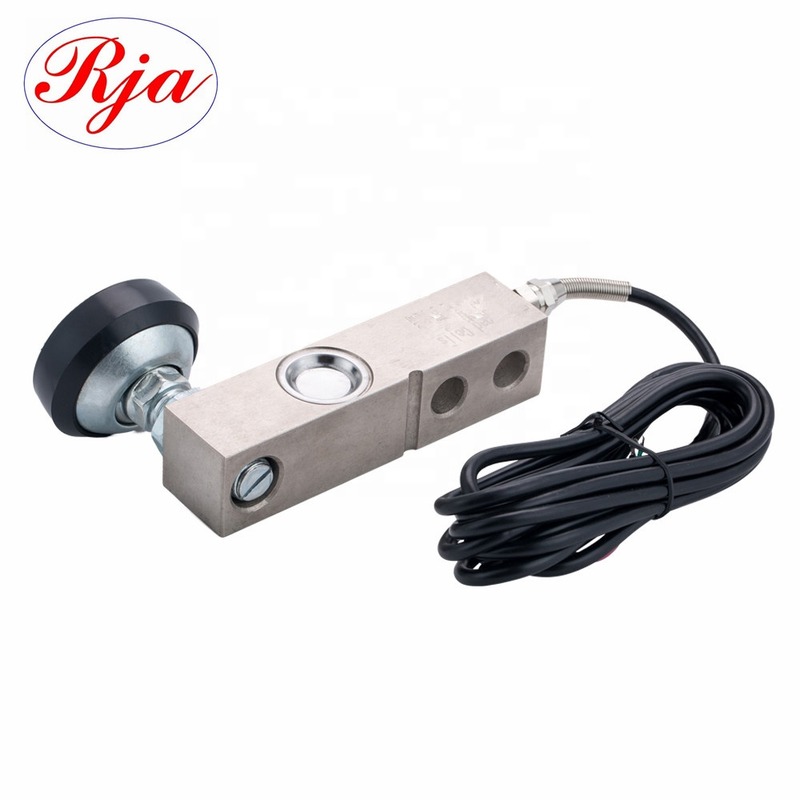

Name: Wide Range OIML Keli SQB Single Shear Beam Weighing Load Cell 500kg-10ton
Brand: Wide Range OIML Keli SQB Single Shear Beam Weighing Load Cell 500kg-10ton
SKU: 9810
Price: 1 USD
Availability: InStock
Rating: 4.7 (148 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Model Number: 9810

Usage: PRESSURE SENSOR

Theory: Resistance Sensor

Output: Analog SENSOR

color: Silver

Structure: Single point parallel beam loadcell

Recommended excitation: 6-12V

certificate: CE

Application: Wide Range

Product name: Load Cells

Type: Open

Capacity: 0.25, 0.3, 0.5, 0.75, 1, 1.5, 2, 2.5t

Input resistance: 400Â±10OHM

Output resistance: 352Â±3OHM

Grundinformation

Zertifizierung: CE

Model Number: 9810

Zahlung und Versand AGB

Supply Ability: 1000 Piece/Pieces per Week

Produkt-Beschreibung

2000KG Single Point Shear Beam Load Cell, truck scale load cell, weighbridge sensor

What is load cell ?

Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial aeras. It is used in tank scales, hopper scales, hanging scales, vehicle scales, and other scales or control systems that require fast and accurate force measuring.

Product Description

Specification

Capacity	T	0.25/0.5/1/1.5/2.5/3/5/10
Sensitivity	mV/V	2.0±0.15
Combined Error	%FS		0.01	0.02
Creep	%FS(15min)		0.01	0.02
Input Resistance	Ω	380±20
Output Resistance	Ω	350±10
Insulation Resistance	M Ω	≥5000(50VDC)
Zero Balance	%FS	±1
Temperature Effects Span	%FS/10°C	0.02
Temperature Effects Zero	%FS/10°C	0.017
Rated Temperature Range	°C	-10~+60
Operating Temperature Range	°C	-20~+80
Proposed Excitation Voltage	V	6~12
Allowed Excitation Voltage	V	3~15
Safe Overload	%FS	120
Ultimate Overload	%FS	150
Protection		IP65
Material		Aluminum Alloy

Product Display

How to install the load cell ?

Weighing sensor load cell, according to its different working conditions, the installtion structure are also different, load cell can withstand more than 1.5 times load or stress pull. load cell generally adopts screw bearing, if when the capacity more than 1t, Suggest user adoption of a certain structure partial load resistance installation (flange or fixed module), instance as shown below:

Application
